Drum Decanting Unit, Precise Additive Decanting System

Source: Beijing VP Co.,Ltd.
    • VP Drum Decanting Unit
    • VP Drum Decanting Unit Equipment
    • VP Drum Decanting Unit Operation
    • VP Drum Decanting Unit System

    High-Precision Additive Decanting System

    VP Drum Decanting Unit (DDU) is an automated system designed for the precise, metered decanting of high-value additives, widely used in the petrochemical industry. It features quantitative additive transfer, automatic drum rinsing, extraction lance cleaning, a tilting weighing platform, and automatic liquid-level tracking. Once the decanting lance reaches the bottom of the drum, the weighing platform tilts automatically to help drain the remaining material, reducing product residue in the drum.

    VP Drum Decanting Unit Video Demo

    BJVP Drum Decanting Unit offers precise, metered decanting of high-viscosity additives, automatic drum rinsing, and self-cleaning of the decanting lance, helping improve material recovery and operational efficiency.

    Overall weight Approx. 2,550 kg
    Standard container capacity 200 L drums / IBC totes
    Residual material in empty drum Less than 0.5 kg after drum rinsing
    Decanting capacity 6 m³/h
    Automatic processing time Less than 6 min/BBL
    System pressure 16 bar
    Temperature range 40°C–130°C
    Recommended viscosity Up to approx. 2,000 cP
    Decanting lance Automatic liquid-level tracking
    Control system Local HMI operation with communication to the supervisory control system
    Local display Real-time weight display, status indicators, alarm indicators, and emergency stop button
    Rinsing oil tank Insulated and heat-traced

    The DDU consists of a decanting lance, weighing platform, drum support rollers, insulated rinsing tank, decanting pump, automatic valves, monitoring instruments, and an operator interface.

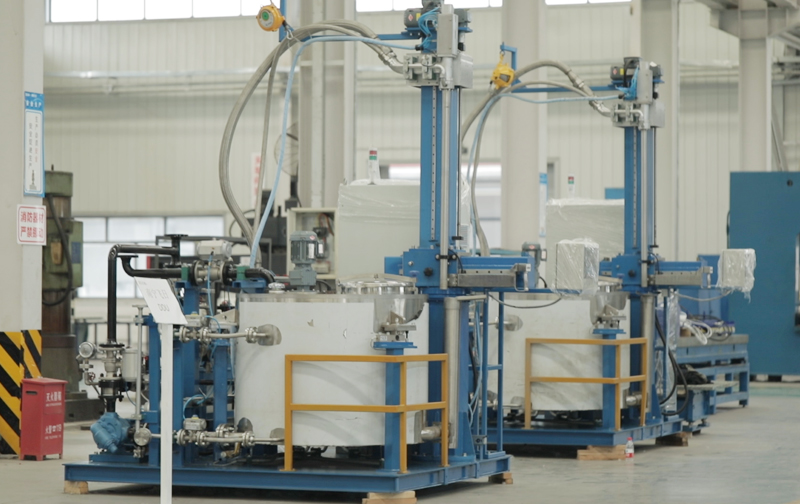

    BJVP Drum Decanting Unit System

    The fully automatic DDU supports precise quantitative decanting, automatic drum loading, automatic drum opening and alignment, barcode scanning, self-cleaning, and simultaneous operation of multiple decanting lances.

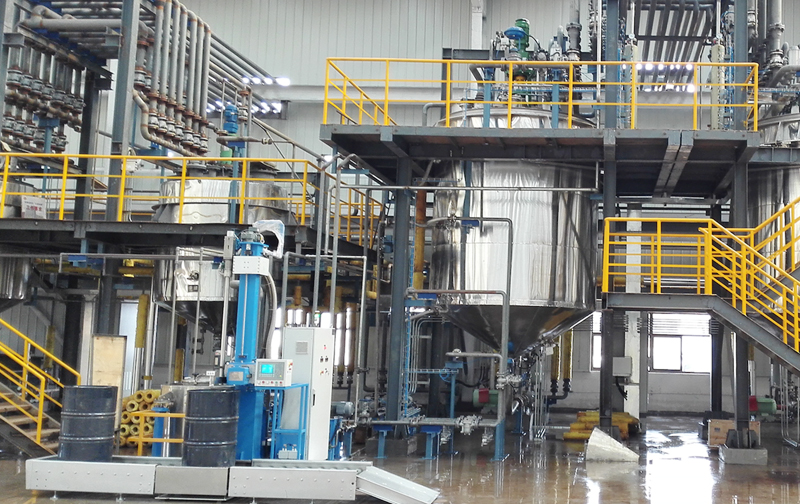

    Drum Decanting Unit System

    BJVP Drum Decanting Unit is designed for handling high-viscosity additives. The PLC-controlled system automates the decanting process and supports material transfer from 200 L metal drums, plastic drums, and IBC totes.

    VP Fully Automatic Drum Decanting Unit

    BJVP DDU is engineered and customized to meet specific process requirements. Contact us for professional Drum Decanting Unit solutions tailored to your production needs.

    Customized VP Drum Decanting Unit

    Below is a BJVP customized, fully automatic quantitative Drum Decanting Unit for transferring liquids from drums and IBC totes, designed for high-viscosity additive handling.

    BJVP High-Viscosity Additive Drum Decanting Unit

    Key Features and Advantages:

    • Automatic Quantitative Decanting

      Fully automated control enables precise additive decanting, automatic drum opening, and self-cleaning, improving operational efficiency and reducing manual handling.

    • Precision Additive Dosing

      Accurately measures and transfers small quantities of high-viscosity additives into the blending process, helping maintain precise formulations and consistent product quality.

    • Flexible Multi-Drum Handling

      Supports decanting from individual 200 L drums, multiple drums on a pallet, and IBC totes, providing flexibility for different production requirements.

    • Integration with Production Systems

      Integrates with pigging systems, ABB batch blending systems, and other process equipment to support automated additive handling and streamlined production workflows.
