What Is a Manifold System?

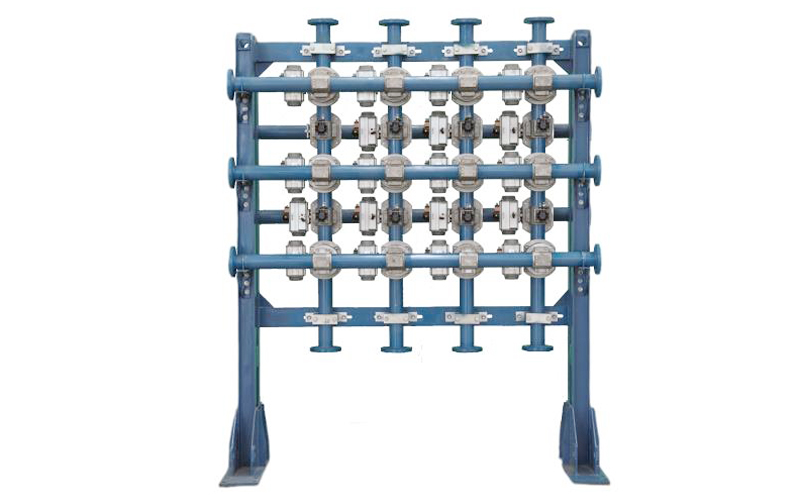

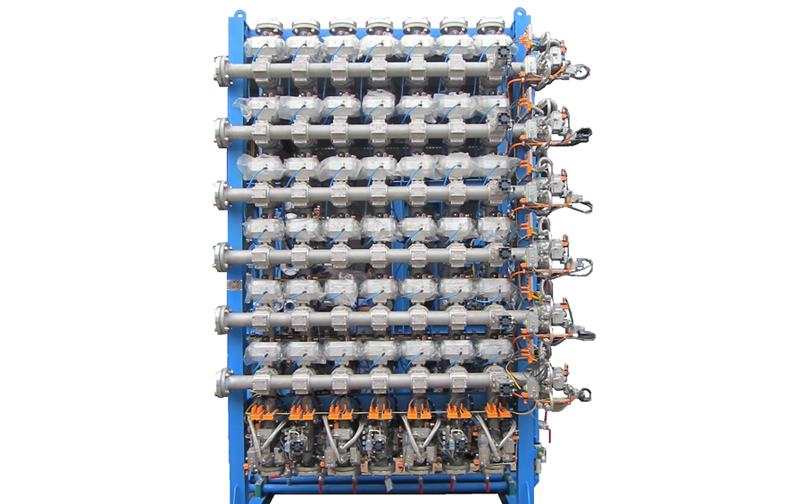

A manifold system (also known as a wellhead valve array system) is an integrated pipeline distribution solution designed to optimize on-site pipeline layouts. Its core function is to allow flexible distribution, enabling any inlet to connect to any outlet without affecting the normal operation of other connections. There are three main types of manifold systems: fully automatic valve array manifold, manual valve array manifold, and sanitary manifold. As a key fluid manifold system, it simplifies pipeline layout, reduces the number of pipelines, and, when used with a pigging system, efficiently removes residual liquids, significantly improving space utilization and operational efficiency.

Advantages of Manifold Systems

1. Supports Multi-path Synchronous Operation, Boosts Production Efficiency: With matrix-style valve control, the manifold system allows multiple pipelines to perform filling or transfer operations simultaneously without interference, optimizing production flow in limited spaces.

2. Reduces Pipeline Quantity: The system uses shared pipeline designs and matrix layouts to replace traditional single-pipeline setups, significantly reducing on-site pipeline count, installation complexity, and investment costs.

3. Compact Structure, Easy to Manage and Maintain: Adopting a standardized, integrated design replaces scattered, complex pipeline layouts. This minimizes space occupation and simplifies daily management and maintenance.

4. Clean pipeline residues and ensure process quality: The pigging system efficiently cleans shared pipelines during material changeovers, minimizing cross-contamination and maintaining process integrity.

5. Zero Leakage Design: Ball valves connect the cross and longitudinal pipes tangentially, isolating different media within the pipes and ensuring that parallel pipelines operate simultaneously without interference or cross-contamination.

Manifold System Applications

1. Production processes that require frequent material changeovers or cleaning/recycling of pipelines, such as in the petrochemical and cosmetics industries.

2. Filling and transfer systems with limited space and complex pipeline layouts.

3. Situations where reducing on-site pipelines and valves is necessary to optimize operational processes.

BJVP Manifold System Features

BJVP’s manifold system is built around the core principles of matrix integration, zero contamination, high efficiency, and ease of management. It offers a customizable, reliable, and cost-effective pipeline distribution solution, especially suitable for highly automated production environments.

1. Standard Matrix Design: Customizable according to user needs.

2. Automated Switch Control with Pigging System: Automatic pipeline cleaning ensures no residual media in the pipes.

3. Zero Leakage Design: Ball valve connections between horizontal and vertical pipes eliminate oil leaks or cross-contamination.

4. Compatible with Both Same and Different Pipe Diameters: The system facilitates both equal-diameter and step-up/step-down connections.

BJVP, a leading manufacturer of manifold systems in China, offers comprehensive solutions for research, design, production, installation, and after-sales service. Leveraging outstanding technical expertise and extensive industry experience, BJVP delivers fluid pipeline distribution systems tailored to modern, automated production environments, ensuring all designs and manufacturing meet strict quality standards.
