Filtration System
Source: Beijing VP Co.,Ltd.
| Model | VPHFB |
| Port size | 25/40/50/65/80/100/150/200 |
| Port type | NPT/Clamp/Flange |
| Code | DIN/ASME |
| Design pressure | 1.0/1.6/2.5MPa |
| Materital | 304/316/316L |
| Magnetic bar | 12000 gauss |
| Design temperature | 60～200℃ |
| Rubber ring material | NBR, Neoprene, EPdm, Fluoror, Polytetrafluoroethylene, Perfluoroether rubber |
| Mesh number | 10～2000 |
Triple barrel or single barrel filter，Filter elements can be customized according to requirements
Product Features

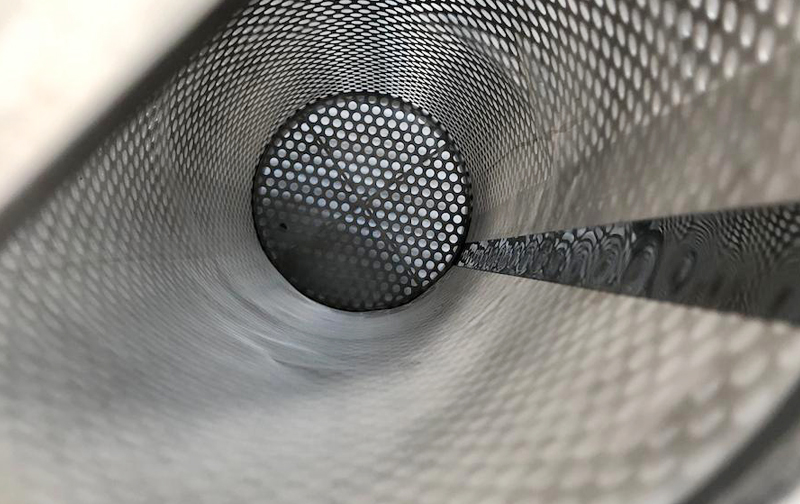

l、Metal filter screen, can be repeatedly cleaned, long service life, no need to replace the filter element, reduce the cost of maintenance;
2、Removable support column with magnetic bar, easy to replace;

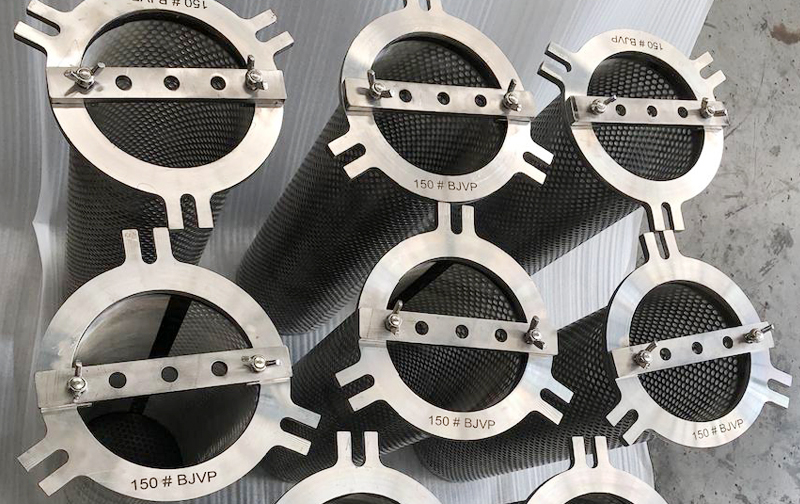

3、Butterfly nuts, easy to remove and replace;
4、The filter screen and basket are deformation resistant;
5、Mesh number：10-2000.

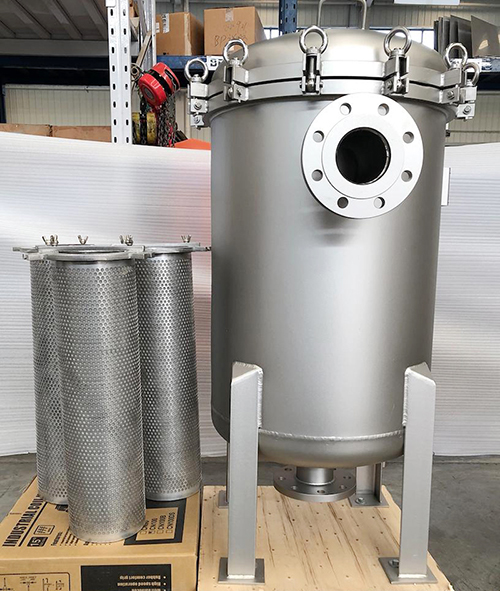

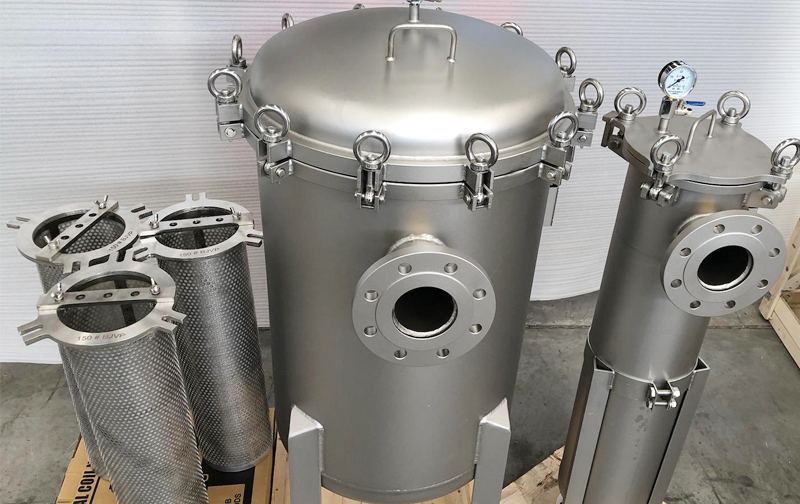

Triple barrel filter and single barrel filter
